PAPUGA 25PCS 12-10 AWG (4-6 mm2) #8 / M4 Insulated Fork Spade Crimp Connector, 600V 48A, UL cUL Power Lug for Inverter Solar & Marine Wiring, Automotive & Marine
Product details
| Management number | 234143051 | Release Date | 2026/06/27 | List Price | US$4.20 | Model Number | 234143051 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
PAPUGA 12–10 AWG Insulated Fork (Spade) Crimp ConnectorElectrical Rating: 600V / 48A Max | Certification: UL & cUL Listed – File E357535Bolt Size: #8 / M4This 12–10 AWG insulated fork connector is designed for secure, high-current electrical connections in automotive, marine, industrial, and power-distribution applications. The fork design allows installation without fully removing the screw or bolt.Manufactured from Tin-Plated Copper, this connector provides excellent electrical conductivity and corrosion resistance. Designed for use with 12–10 AWG stranded copper wire only and rated for up to 48A at 600V when properly crimped.Crimping Instructions: Use a crimping tool designed for insulated terminals. The PVC insulation may be removed if required, but a bare-terminal crimper must then be used. Always perform a pull test after crimping.Fit & Installation Note: Before ordering, confirm the selected wire gauge and connection size match your application. Designed for stranded copper wire and proper crimping tools only.✔ FIT & USE CONFIRMATION Matches the selected wire gauge and connector size shown above Designed for stranded wire and proper crimping tools Disconnect power before installation for safety
- WIRE SIZE & AMPACITY: Fits 12-10 AWG (Metric: 4–6 mm²) stranded wire & handles up to 48A / 600V (AC or DC). Do not use with solid wire.

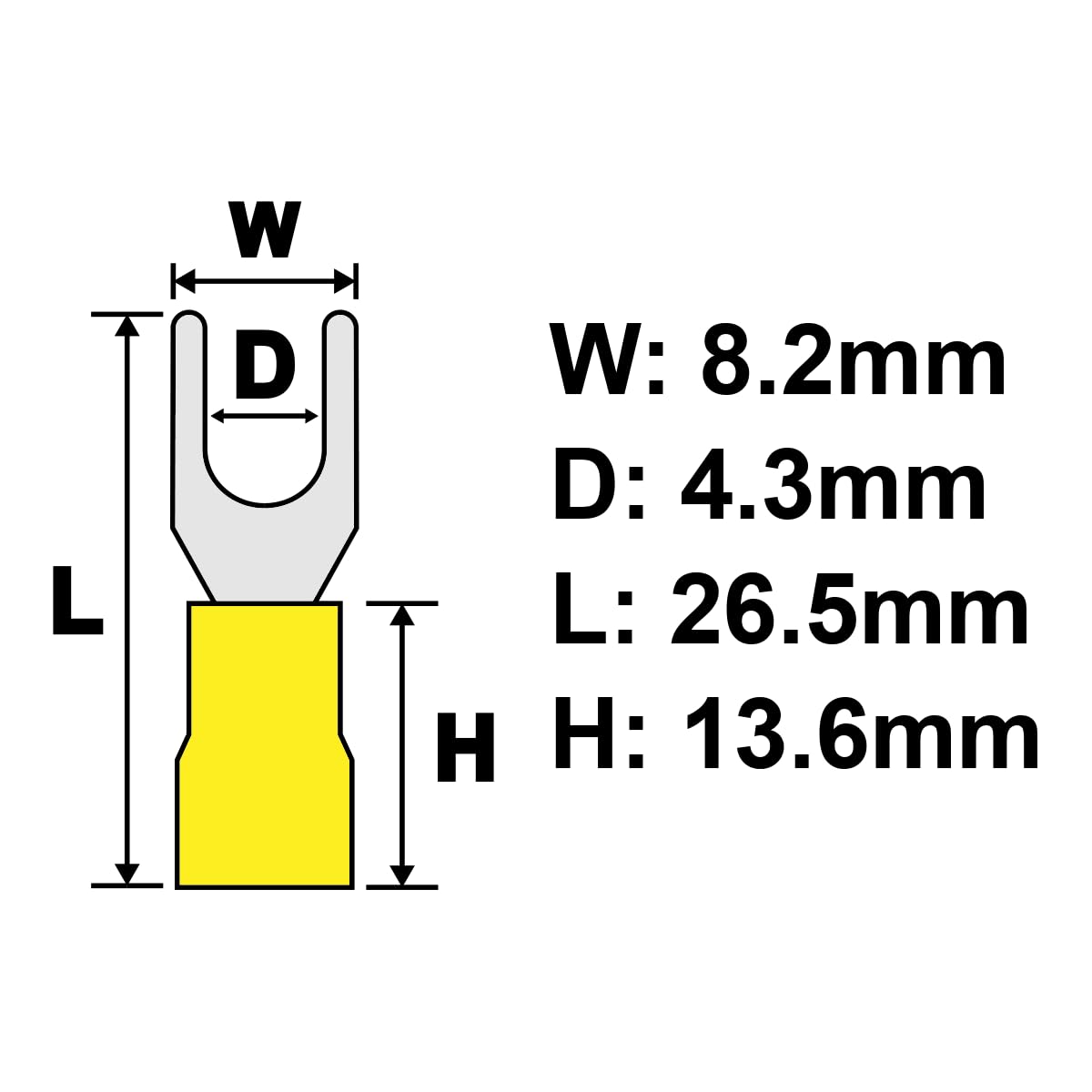

- FORK SIZE: Fits #8 (Metric: M4 / 4mm) screw terminals. Please verify the inner width of the fork connector you need for your application. The size you are selecting on Amazon is what fits in between the forks.
- MATERIAL: Tin plated copper for corrosion resistance and reliable conductivity. PVC insulation handles up to 75° C.
- EASY INSTALL: Fork design allows quick attachment and removal without fully removing the screw.
- INSTALLATION: Crimps well with PAPUGA EC-2310IC crimper - ASIN B0H31ZHGT6. Can be crimped with insulated-terminal tools, or insulation may be removed for use with non-insulated crimpers. Disconnect power before working.
| ASIN | B0F8T3NK9Y |
|---|---|
| Color | Yellow |
| Gauge | 10 |
| Model | YF5.5-4Y |
| Terminal | Spade Terminal |
| Stud Size | #8, 4mm, M4 |
| Brand Name | Generic |
| Unit Count | 1.0 Count |
| Part Number | YF5.5-4Y-25 |
| Manufacturer | TAIXING LONGYI TERMINALS CO |
| Material Type | Copper |
| Connector Type | Fork, Spade |
| Maximum Voltage | 600 Volts |
| Number of Items | 25 |
| Contact Material | Plated Tin |
| Specification Met | UL, cUL, cULus |
| Temperature Rating | 75°C |
| Included Components | 25 × 12-10 AWG insulated fork spade crimp connectors (#8 / M4) |
| Insulation Material Type | Polyvinyl Chloride |
| Item Dimensions L x W x H | 1.04"L x 0.35"W x 0.26"H |
