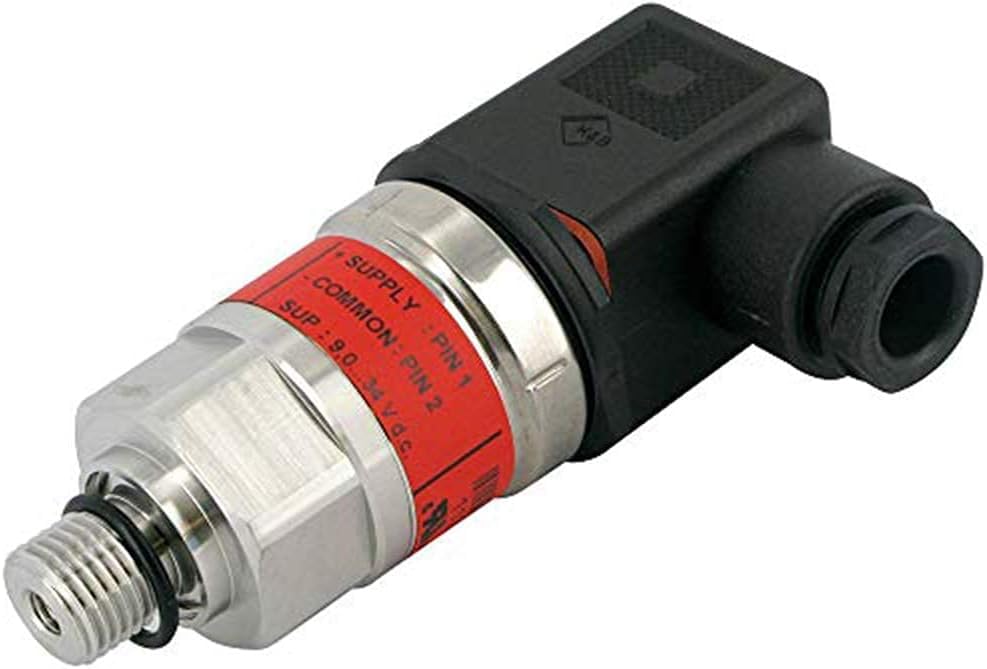

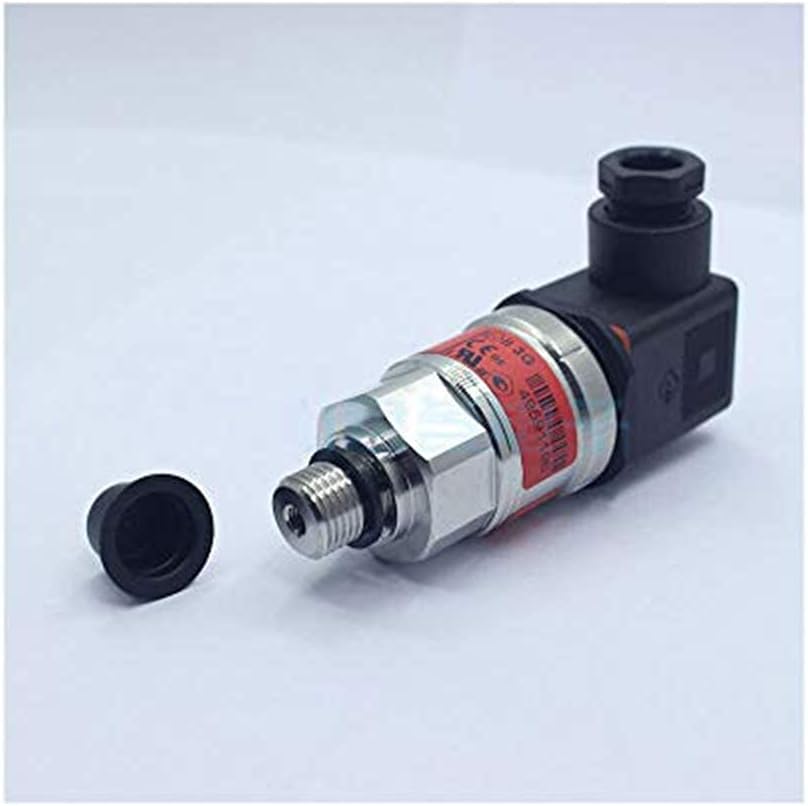

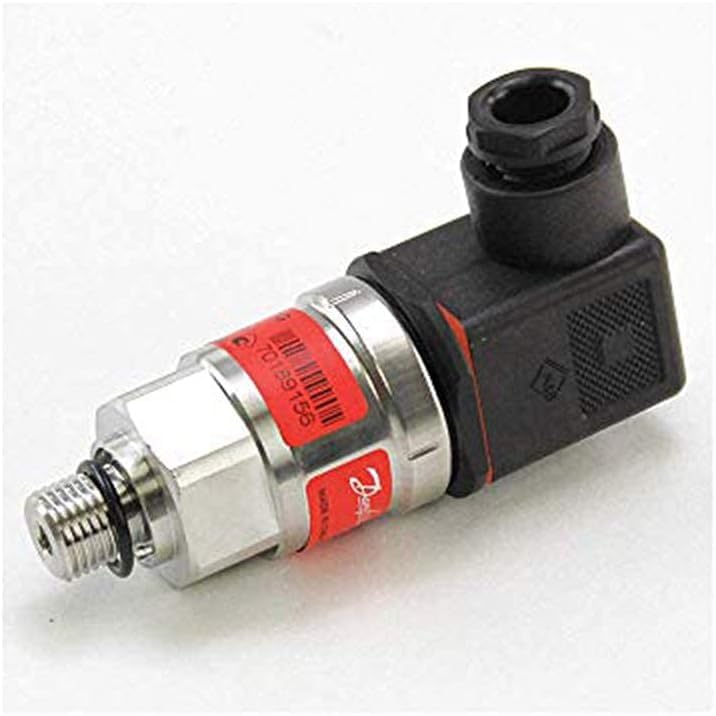

Heavy Duty Pressure Transmitter or Transducer (0 to 16 Bar) (0 to 232.0 psi) G ¼ Thread with 4-20mA for Hydraulic Applications | Industrial Pressure Transmitter | Model: MBS 3000
Product details
| Management number | 220427774 | Release Date | 2026/05/03 | List Price | US$56.00 | Model Number | 220427774 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

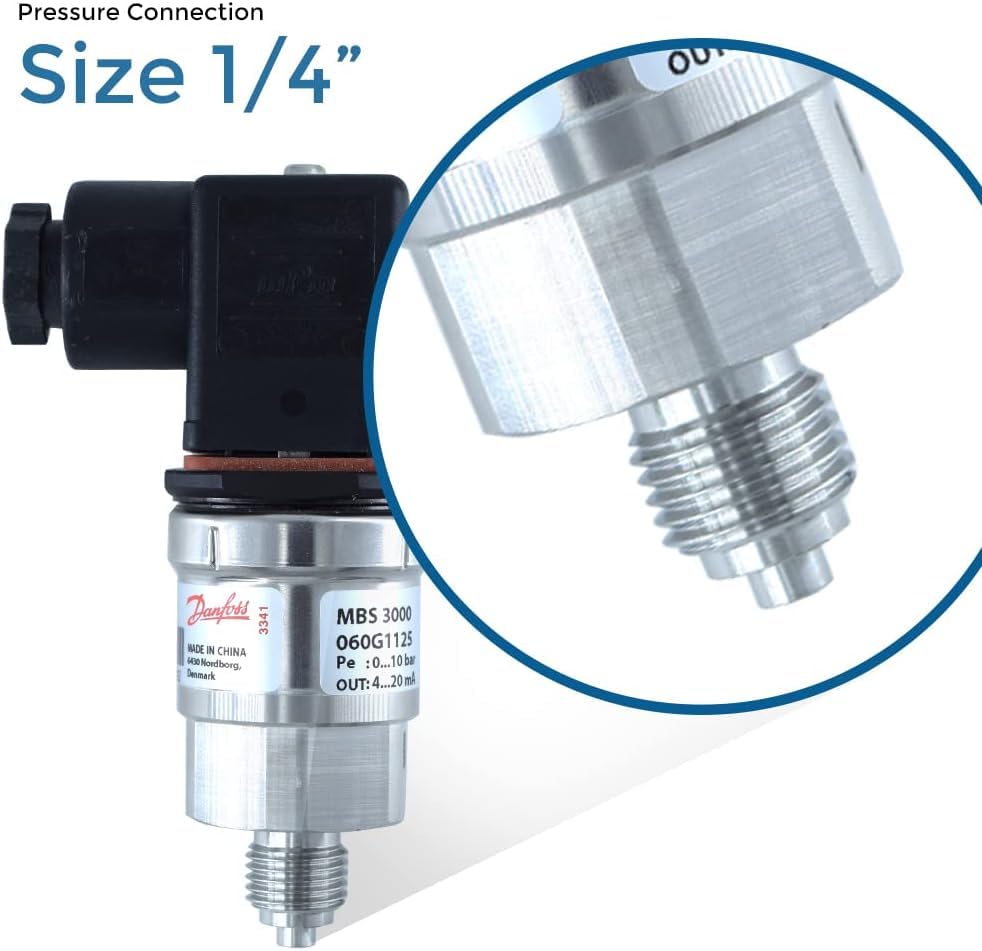

- Measuring range: 0 to 232.06 psi | Operating Temperature: -40°F to 185°F(-40 °C to +85 °C) | Accuracy (incl. non-linearity, hysteresis and repeatability) ≤ ± 0.5% FS (typ.) & ≤ ± 1% FS (max.) | Standard Output Signal: 4-20 mA | Pressure Connection: G 1/4
- Hysteresis and repeatability: ≤ ± 0.1% FS | Thermal zero point shift: ≤ ± 0.1% FS / 10K (typ.) & ≤ ± 0.2% FS / 10K (max.) | Response time: < 4 ms | Overload pressure (static): 6 × FS (max. 1500 bar) | Electrical connection: DIN plug
- Burst pressure: 6 × FS (max. 29007.55 psi) | Power-up time: < 50 ms | Durability, P: 10 – 90% FS >10 × 106 cycles | Sensor Operating temperature: Normal: (-40°F to 185°F) -40 to 85 °C & ATEX Zone 2: 14°F to 185°F( -10 to 85 °C)
- Insulation resistance: > 100 MΩ at 500 V DC | Enclosure: IP65 | Net weight (depending on pressure connection and electrical connection): 0.44 to 0.66 lbs(0.2 – 0.3 kg) | Temperature compensated and laser calibrated pneumatic pressure transmitter hydraulic pressure transducer
- Supply Scope: 1 unit of MBS3000 pressure transmitter and Instruction manual | Applications: Pumps, Compressors, Pneumatics, Water treatment, Automobiles, Heavy Industries & HVAC pressure transducer industrial pressure transmitter
| Item Weight | 11.2 ounces |
|---|---|
| Manufacturer | INSTRUKART |
| Package Dimensions | 5.5 x 2 x 2 inches |
